Hermetically Sealed Transformer

Get a Price/Quote

MOQ : 1 Unit

Hermetically Sealed Transformer Specification

Cooling Type
Oil cooled

Product Type
Other

Material
Copper

Output
Product wise

Frequency (MHz)
50 Hertz (HZ)

Efficiency
99.9%

Phase
Three Phase

Power Scope
Upto 3150 KVA

Hermetically Sealed Transformer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
2-3 Months

Main Export Market(s)
Western Europe, Asia, Australia, North America, Eastern Europe, Middle East, Central America, South America, Africa

Main Domestic Market
All India

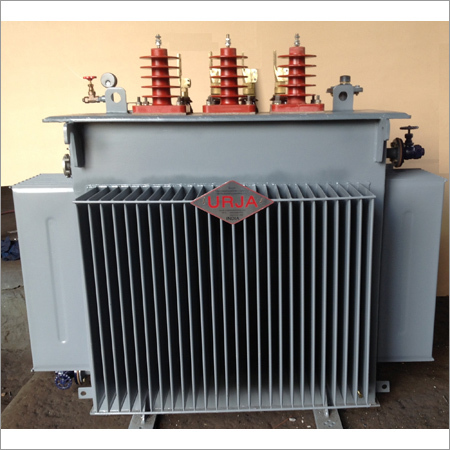

About Hermetically Sealed Transformer

Being an ISO 9001:2008, 14001:2004, OHSAS:18001 certified organization in this domain, we provide the best quality Hermetically Sealed Transformer. This transformer is widely demanded at offshore platforms and other related areas for transforming electricity. Provided transformer is manufactured with immense care using supreme grade components and modern techniques. Offered Hermetically Sealed Transformer can be bought by our valuable patrons at cost effective rates within committed time frame.

Features of Hermetically Sealed Transformer:

Longer service life
Strong built
Simple to install
Hassle free functioning

Hermetically sealed transformer is a transformer design which has no conservator. Here the dielectric insulating fluid in the transformer tank is completely sealed and is in zero contact to the atmosphere. The design avoids air in the transformer tank thereby avoiding sludging and oxidation of the dielectric fluid.

Hermetically sealed transformers are totally maintenance free and are particularly suited for use in exposed outdoor environments such as moisture, salt or dust laden atmospheres. They are used extensively in chemical plants, oil and gas terminals where poor accessibility makes regular maintenance impracticable. Transformers immersed in synthetic coolants are suitable for use indoors with adequate ventilation or near to the load center where oil would not be considered environmentally acceptable.

Normally these type of transformers are accommodated by devices that measure heat related volume variations. Gas cushion is used to compensate the volume variation due to heat. Normally the gas is nitrogen. This gas is thermally uncoupled from the dielectric liquid.

Application in following industries : Chemical, Pharmaceuticals, Steel, Textile, Engineering, Plastic, Cement, Refineries, Mining, Captive Power Projects, Hydro Power Projects, Wind Mill Farms, Construction Houses, Pharma, Electrical, Electronics, Renewable Energy, Automobile.

Unmatched Efficiency for Diverse Applications

With an impressive 99.9% efficiency, our hermetically sealed transformers are perfect for industries seeking energy conservation and robust performance. Suited for both new installations and upgrades, these transformers guarantee minimal energy losses, delivering maximum power for heavy-duty requirements.

Advanced Cooling and Reliable Materials

Our transformers incorporate an oil-cooled system and use high-quality copper windings. This combination bolsters operational lifespan and maintains performance stability, even under rigorous loads. The hermetically sealed design enhances safety by preventing the ingress of air or moisture.

FAQ's of Hermetically Sealed Transformer:

Q: How does a hermetically sealed transformer benefit industrial operations?

A: Hermetically sealed transformers offer protection against air and moisture ingress, reducing oxidation and the risk of electrical faults. Their high efficiency (99.9%) minimizes energy loss, ensuring stable performance and long-term cost savings for industrial environments.

Q: What materials are used in the construction of this transformer?

A: These transformers are constructed using premium-grade copper for the windings, resulting in superior conductivity and durability. The hermetic seal coupled with an oil-cooled system further enhances the transformer's reliability and efficiency.

Q: When is it advisable to choose a hermetically sealed transformer?

A: Harmonically sealed transformers are recommended for use in environments with high humidity, dust, or pollution, or whenever maximum reliability and reduced maintenance are priorities. Their robust design ensures safe operation and reduced risk of contamination over time.

Q: Where can these transformers be utilized effectively?

A: Our hermetically sealed transformers are ideal for use in factories, manufacturing plants, substations, and other demanding settings where uninterrupted, efficient, and safe power supply is essential.

Q: What is the process for installing these transformers?

A: Installation involves site assessment, preparing a suitable foundation, positioning the transformer, and ensuring proper oil filling and electrical connections. Our team provides end-to-end support to ensure a seamless and secure installation.

Q: How does the oil-cooling system improve transformer operation?

A: The oil-cooling mechanism dissipates heat effectively, maintaining safe operational temperatures. This enhances efficiency, prevents overheating, and ultimately extends the transformer's service life under heavy loads.

Q: What are the advantages of using copper in these transformers?

A: Copper offers superior electrical conductivity, reducing energy losses and improving transformer longevity. It also withstands thermal stresses better, ensuring performance stability during demanding applications.
