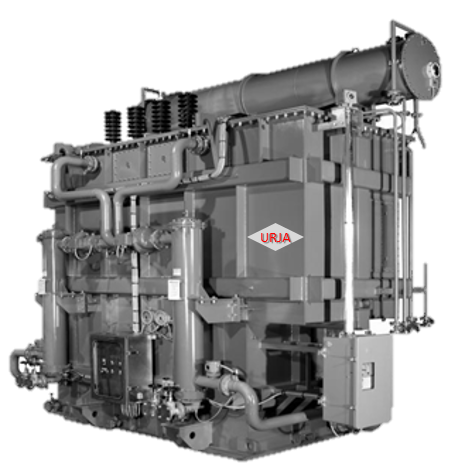

Furnace Power Transformer
200000 INR/Unit
Product Details:
- Coil Material High Conductivity Copper
- Low Voltage As Low as 85 V
- Rated Voltage 11 kV / 33 kV
- High Voltage Up to 33,000 V
- Cooling Type ONAN / ONAF (Oil Natural Air Natural / Oil Natural Air Forced)
- Load Loss As per IS2026
- Capacity 500 kVA to 30 MVA
- Click to View more
X
Furnace Power Transformer Price And Quantity
- 1 Unit
- 200000 INR/Unit
- 200000.00 - 800000.00 INR/Unit
- IS/IEC and customer specification
- Class F/H
- Below 65 dB at 1 meter
- Outdoor/Indoor
- Lifting lugs and skid base for easy handling
- Oil Level Gauge, Temperature Indicator, Buchholz Relay, Pressure Relief Device, Radiators
- Cold Rolled Grain Oriented (CRGO) Steel
- Designed to withstand up to 25 kA
- Continuous Rated
- IP 54 / IP 55
- Mineral Oil
- 6% to 10% (as per customer specification)
- +/- 5% in 2.5% steps
- Rust Resistant Paint Finish
Furnace Power Transformer Product Specifications
- 11 kV / 33 kV
- As Low as 85 V
- High Conductivity Copper
- Industrial Furnace Applications
- Furnace Power Transformer
- Up to 33,000 V
- IS 2026, IEC 60076
- Copper
- Three Phase
- 50 Hertz (HZ)
- Up to 30 Tons (varies by model)
- As per IS2026
- ONAN / ONAF (Oil Natural Air Natural / Oil Natural Air Forced)
- -25C to +85C
- Customized (example: 3200mm x 1600mm x 2200mm)
- 99.9%
- Product wise
- 500 kVA to 30 MVA
- Standard Tap Changer or On Load Tap Changer
- Multiple Coil Sections
- Toroidal or Layer Wound
- Up to 30 MVA
- IS/IEC and customer specification
- Class F/H
- Below 65 dB at 1 meter
- Outdoor/Indoor
- Lifting lugs and skid base for easy handling
- Oil Level Gauge, Temperature Indicator, Buchholz Relay, Pressure Relief Device, Radiators
- Cold Rolled Grain Oriented (CRGO) Steel
- Designed to withstand up to 25 kA
- Continuous Rated
- IP 54 / IP 55
- Mineral Oil
- 6% to 10% (as per customer specification)
- +/- 5% in 2.5% steps
- Rust Resistant Paint Finish
Furnace Power Transformer Trade Information
- 100 Unit Per Month
- 2-3 Months
Product Description
We offer our high performance furnace transformers, which find applications in induction furnace industries for the purpose of induction heating process. Our electric arc furnace transformers are worth amidst our global clients for their compact size, high durability and long time trouble free functionality.
The furnace Power Transformer is the component of your furnace that is in charge of boosting or reducing the voltage of your home's alternating current. This component of your home transports electric currents from one location to another. This component also serves a fundamental purpose for any sort of furnace. The furnace Power Transformer will also offer you a better understanding of how furnaces work and function. Although there are some variances, this applies to both residential and commercial furnaces. The furnace transformer's primary job is to give electricity to the furnace. This might result in a reduced voltage output from a high voltage capacity.
Engineered for Heavy-Duty Industrial Applications
This Furnace Power Transformer is specifically designed for demanding industrial furnace operations, supporting continuous duty cycles and high short-circuit withstand capacities up to 25 kA. It is constructed with high-conductivity copper coils and cold-rolled grain oriented (CRGO) steel cores, ensuring optimal performance and durability even in the harshest environments.
Versatile Design and Customization
Each unit is tailored to customer specifications, including adjustable tapping ranges (+/- 5% in 2.5% steps), various cooling options (ONAN/ONAF), and multiple protection features. The transformer accommodates a range of rated and operating voltages (up to 33 kV) and can be installed in both indoor and outdoor settings with customizable dimensions and surface treatments.
Comprehensive Safety and Monitoring Features
Safety and operational monitoring are prioritized with integrated accessories such as oil level gauges, temperature indicators, Buchholz relays, pressure relief devices, and radiators. All units comply with IS 2026 and IEC 60076 standards, ensuring reliable, secure performance in critical industrial roles.
FAQ's of Furnace Power Transformer:
Q: How is the Furnace Power Transformer installed and handled?
A: The transformer is engineered for both outdoor and indoor installation, with robust lifting lugs and a skid base that facilitate safe transport and handling. Its IP54/IP55 protection ensures reliable operation in various environments, and custom dimensions can be specified to match your site requirements.Q: What are the operational benefits of using this transformer in industrial furnace applications?
A: With 99.9% efficiency, a continuous duty cycle, and low noise levels (below 65 dB at 1 meter), this transformer ensures energy savings, minimal operational disruption, and sustained performance. Its robust design withstands short circuits up to 25 kA, making it highly reliable for intensive industrial processes.Q: When should tapping adjustments be made and how does the tap changer work?
A: Tapping adjustments should be made during voltage fluctuation or load changes to maintain optimal output. The standard tap changer or on-load tap changer allows precise regulation within a +/- 5% range in 2.5% steps, ensuring stable performance without service interruptions.Q: Where can this transformer be installed and what are the site requirements?
A: The transformer is versatile and can be installed in both indoor and outdoor settings, depending on your facility. Ensure adequate space for the customized dimensions and accessibility for maintenance, and provide proper foundation and ventilation as per installation guidelines.Q: What safety and monitoring features are included with the transformer?
A: The transformer comes equipped with essential accessories including an oil level gauge, temperature indicator, Buchholz relay, pressure relief device, and radiators. These features help monitor transformer health, provide early warning for faults, and protect against overpressure conditions.Q: How does the transformer maintain durability and resist corrosion?
A: A rust-resistant paint finish is applied as a surface treatment to withstand environmental exposure. Combined with robust core construction using CRGO steel and premium copper windings, the transformer delivers long service life and consistent performance even in demanding industrial environments.Q: What are the available power capacities and output options?
A: This transformer supports a wide range of capacities from 500 kVA up to 30 MVA, with output and voltage specifications customizable according to individual project needs. It handles both high voltage (up to 33,000 V) and low voltage outputs (down to 85 V), making it suitable for diverse industrial furnace setups.Tell us about your requirement
